SolutionMetal Chip Briquetting Solution
Horizontal Metal Chip Briquetting Solution
Plan a horizontal metal-chip briquetting arrangement around chip delivery, receiving and feeding, press access and finished-briquette collection.
Chip collection → feed assessment → controlled feeding → horizontal briquetting → collection
Horizontal briquetting overview & equipment views
This horizontal metal chip briquetting solution focuses on the relationship between the receiving arrangement, horizontal press and surrounding service and collection areas. Use it to plan a practical route from approved machining chips to collected briquettes, with each interface confirmed for your site.
The horizontal metal chip briquetting press performs hydraulic compaction of prepared chips into metal briquettes; upstream feeding and preparation must suit the chip form.

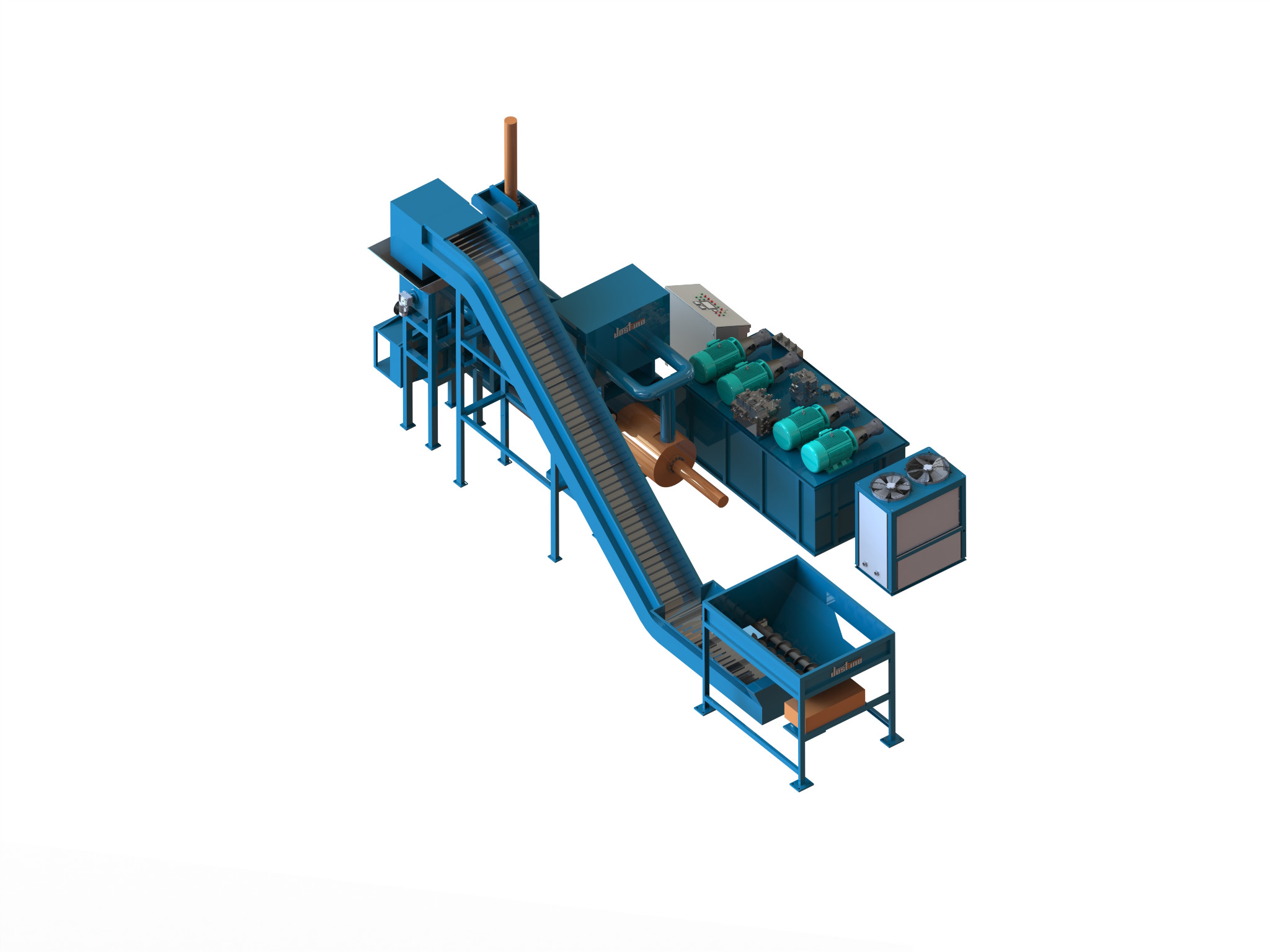

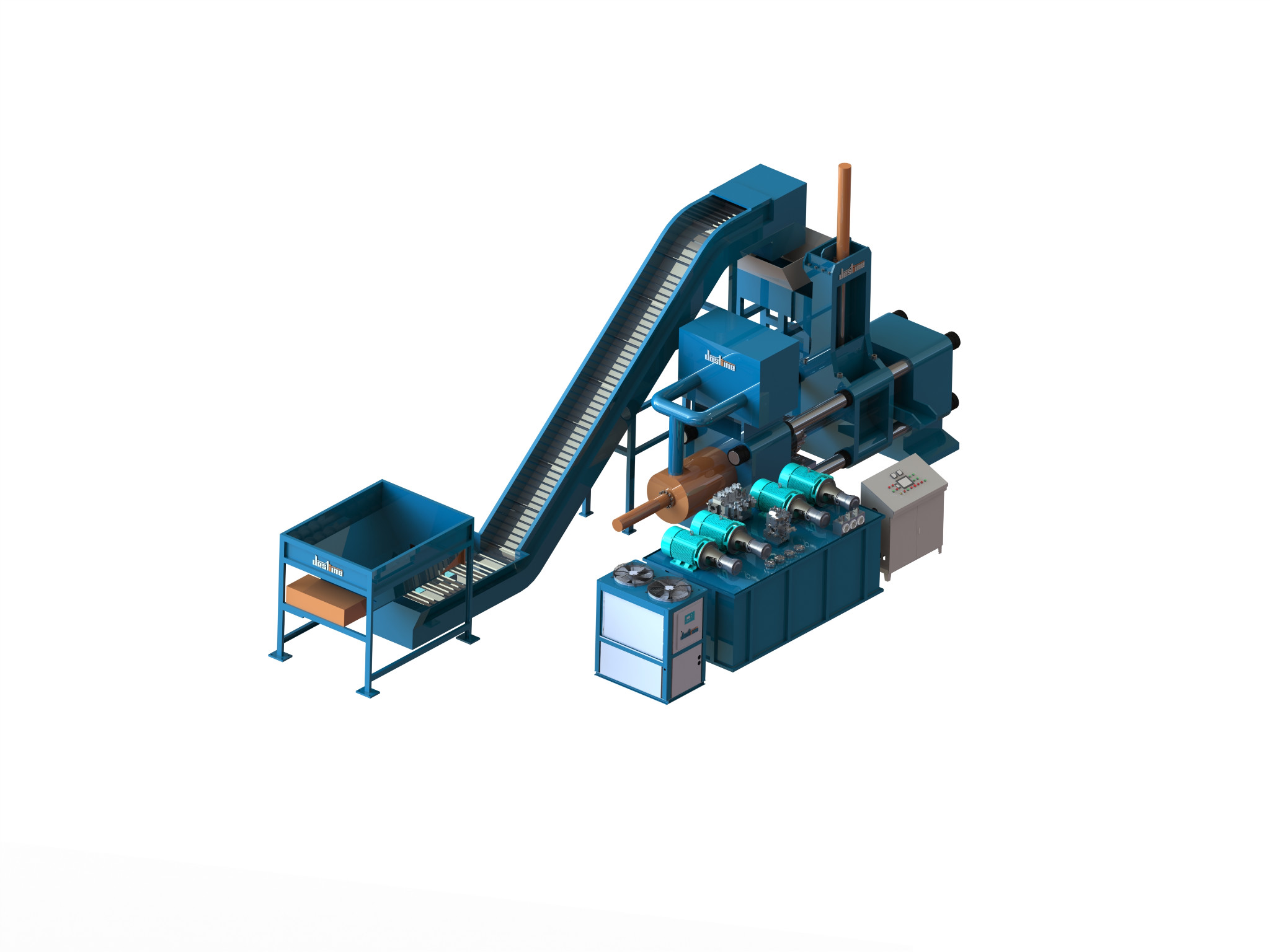

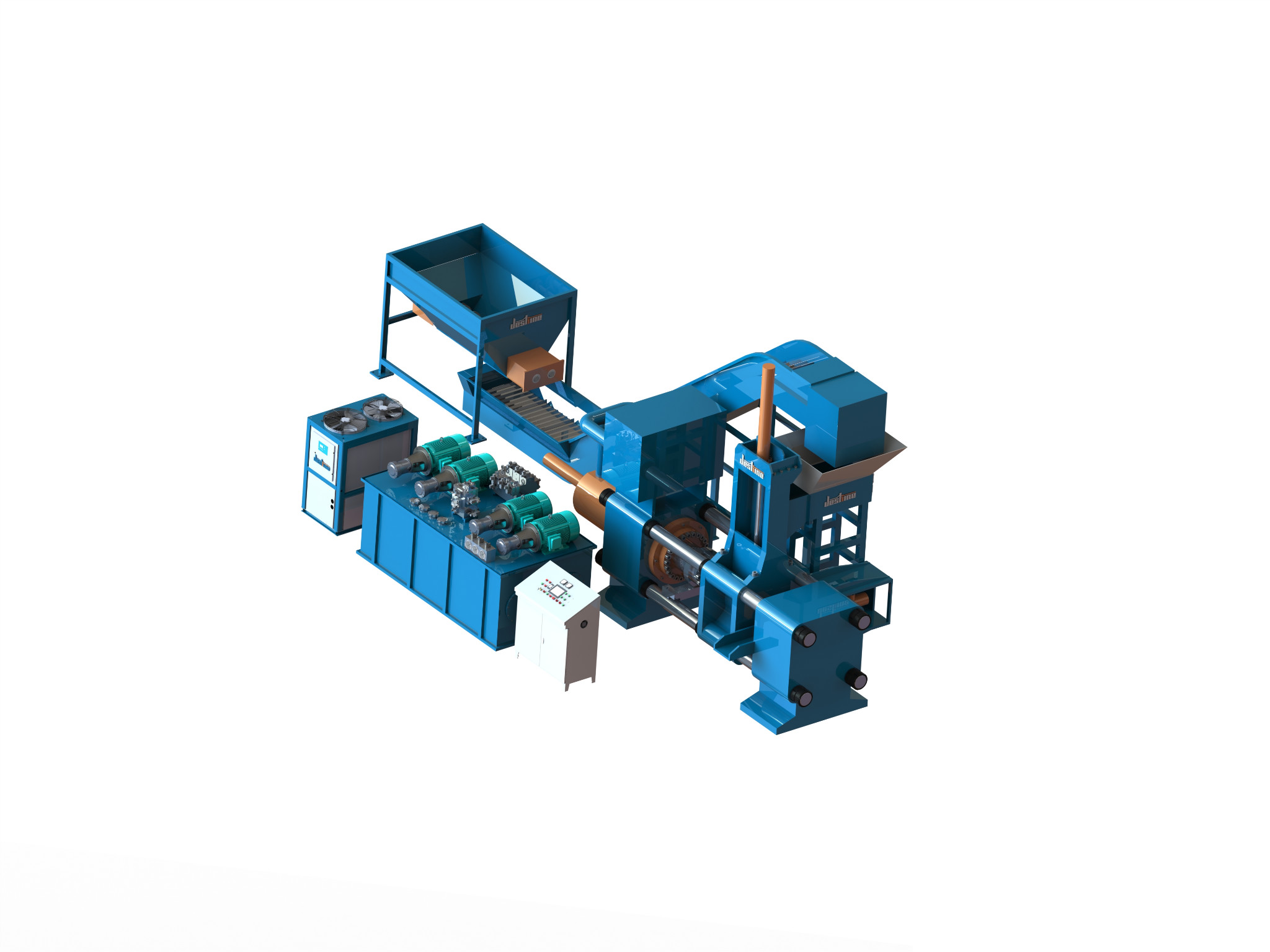

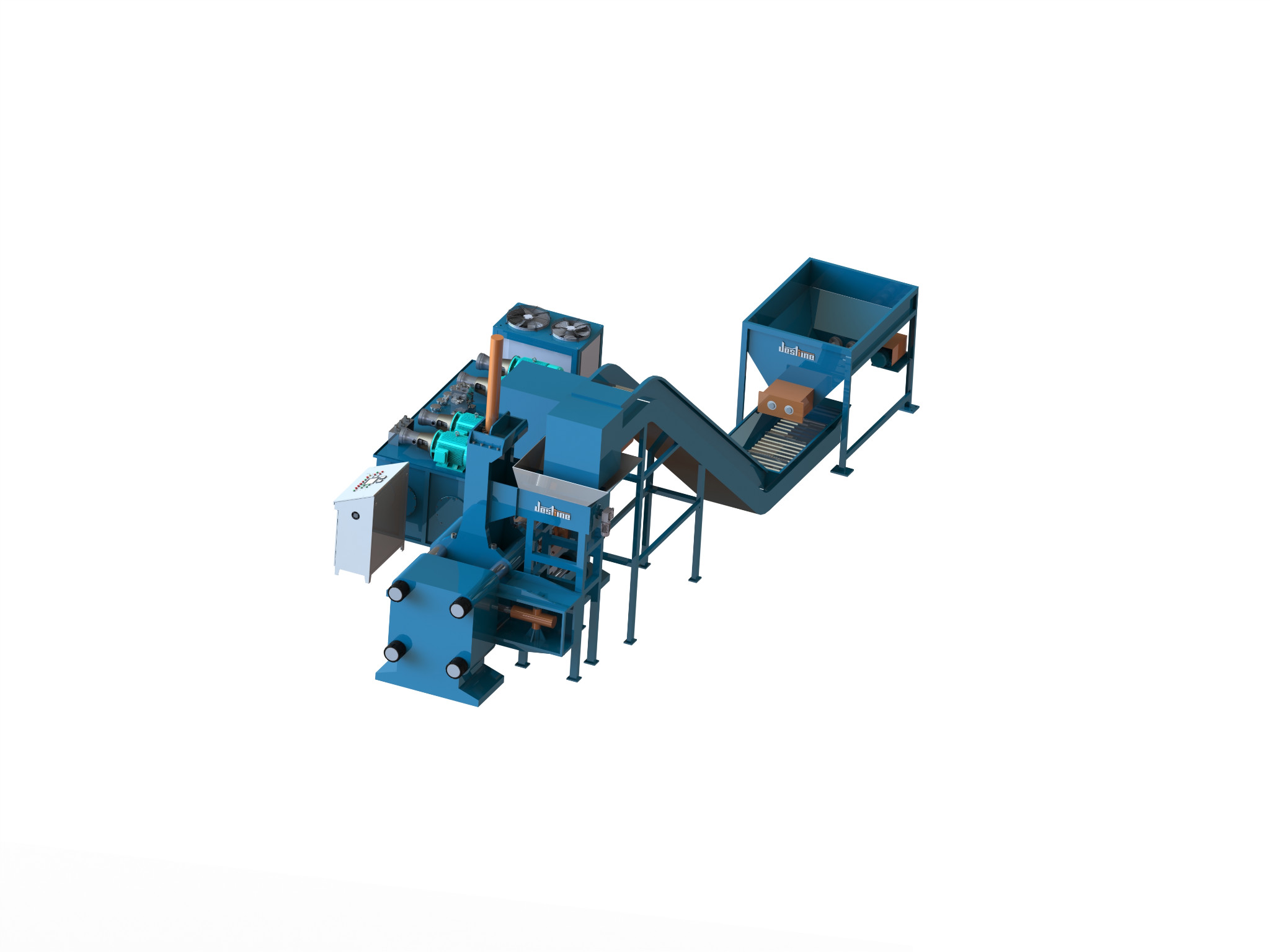

The four supplied equipment views show the feed hopper, inclined conveyor, horizontal press assembly, hydraulic power unit, cooling cabinet and control console from different angles. They support a discussion about loading, feeding, press placement and access. The illustrated configuration does not establish a model designation, production rating or automatic control sequence.
Assess chips and define the feeding requirement
Start with the actual chip stream: identify the metal grade, chip shape and length range, residual cutting fluid, foreign material and variation between batches. Provide representative photos and samples rather than selecting equipment from the metal name alone.
Confirm whether the chips can feed consistently into the selected receiving and press arrangement. Long or tangled chips may require a separately assessed preparation stage; this page does not establish that every chip form can be loaded directly. Keep grades separate where required by the receiving recycler.
Define how chips arrive at the machine, the container or transfer equipment involved, peak delivery patterns and the operator tasks. Review permitted feedstock, excluded objects, residual-fluid handling and any material-specific dust or combustible-metal risks with qualified personnel before agreeing the operating procedure.
Receiving, feeding & briquetting workflow
- Collect and identify: gather the approved chips and maintain the required material and batch separation.
- Check feed condition: confirm that chip size, shape, fluid content and contamination meet the agreed input requirements.
- Receive and feed: coordinate delivery to the receiving hopper with the selected feeding equipment and press cycle.
- Briquette horizontally: compact the approved material using the selected press and tooling, subject to the agreed operating limits.
- Collect and handle: provide a clear briquette discharge and collection route, with batch identification where needed.
Specify what happens when incoming material stops flowing, a receiving area is full or the press is unavailable. Confirm sensing, interlocks, guarding and isolation arrangements in the project documentation. Equipment views alone do not establish unattended operation or automatic blockage recovery.
2D layout & installation planning

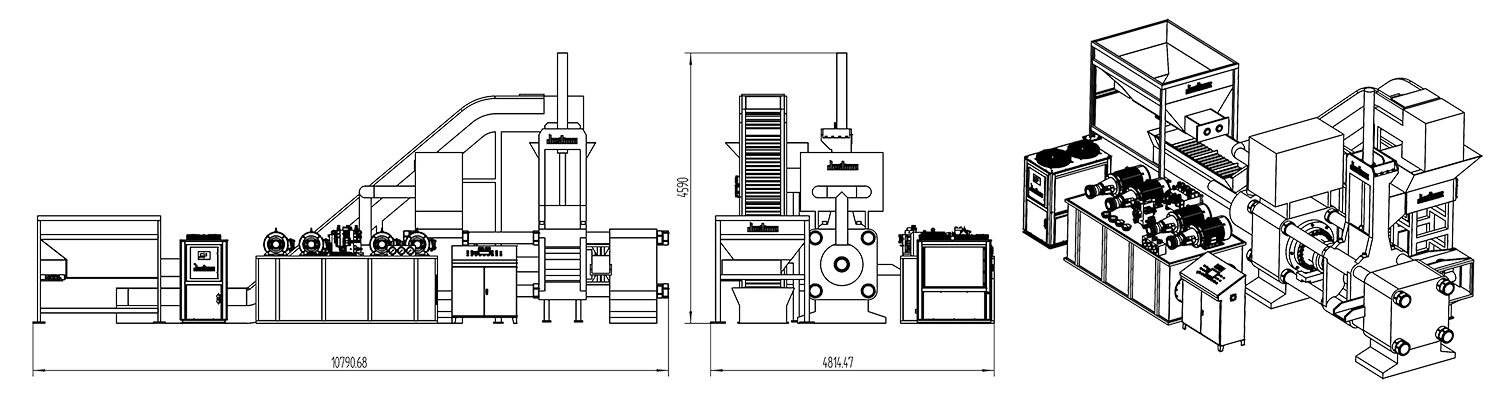

The supplied 2D general-arrangement drawing supports discussion of the horizontal equipment layout. Open the original drawing to examine the views and dimension annotations at full size.
Review the complete installation envelope, including material delivery, hopper access, the press and service equipment, discharge collection and maintenance clearance. Plan the route for removing or servicing components as well as the space occupied during normal operation.
Confirm floor loading, foundations or anchoring, electrical supply and any fluid-management connections against the approved project drawing and equipment schedule. Do not use image proportions or reference dimensions as a final installation specification.
Select the arrangement & verify performance
Select the press, receiving arrangement, feeding method and collection equipment as a coordinated system. Establish the actual feed requirements and target briquette handling method before finalizing the configuration.
| Review item | Information to confirm |
|---|---|
| Chip stream | Metal identification, chip form, representative samples, residual fluid and contaminants |
| Delivery and feeding | Container or transfer method, delivery peaks and feed consistency |
| Operating duty | Quantity per shift, working schedule and expected interruptions |
| Briquette requirements | Agreed form, handling method and receiving specification |
| Installation | Approved equipment envelope, access, floor requirements and utility connections |
| Controls and acceptance | Operating sequence, protective measures and representative-material trial criteria |
Use a representative-material trial to assess feed stability, interruptions, briquette condition and handling. Confirm throughput, motor power, tooling and finished-briquette characteristics for the selected equipment and material. No numerical performance rating is established by the supplied illustrations.
Frequently asked questions & next steps
Is this arrangement a confirmed DSH model?
The supplied solution images do not establish a model designation. The separately documented DSH Horizontal Metal Chip Briquetting Press is a relevant equipment reference; confirm the model selected for this arrangement in the project proposal.
Can long or tangled chips enter directly?
Direct feeding must be assessed against the selected equipment’s input requirements. If preparation is needed, review a dedicated lifting, shredding and briquetting solution and confirm its suitability for the actual material.
Does a horizontal layout determine capacity or briquette quality?
No. Confirm performance using the selected equipment, tooling and representative chips. The layout images alone do not establish throughput, briquette density or power requirements.
What is needed to confirm installation space?
Provide a floor plan, the chip-delivery method, discharge collection requirements and service-access constraints. Confirm the complete envelope and utility requirements against the approved project drawing, including its units and revision.
Plan your horizontal briquetting arrangement
Send chip photos and samples, material information, shift quantities, the intended feeding method and the required briquette handling arrangement. Include your floor layout and any fluid-management requirements.
Discuss your horizontal metal chip briquetting solution
Related chip-handling arrangements
Compare the short-chip lifting and tipping solution for container-based feeding, or the DSS lifting, tipping and large-hopper solution for a separately documented buffering arrangement. These are comparison references, not an identification of the equipment shown here.
